The Events2HVAC system uses a provider model design to enable Streamside Solutions to easily create modules for different event reservation systems.
The ML Schedules event provider was designed to interface to the ML Schedules API so that room schedules entered into the ML Schedules system can send commands to the HVAC systems linked in Events2HVAC.

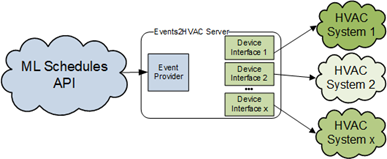

The diagram below illustrates how the components of Events2HVAC interact with other systems. The ML Schedules event provider pulls schedules through the web API (left), while various device interfaces can be installed to send commands to different HVAC systems (right).
Figure 1- ML Schedules API Interface to Events2HVAC
